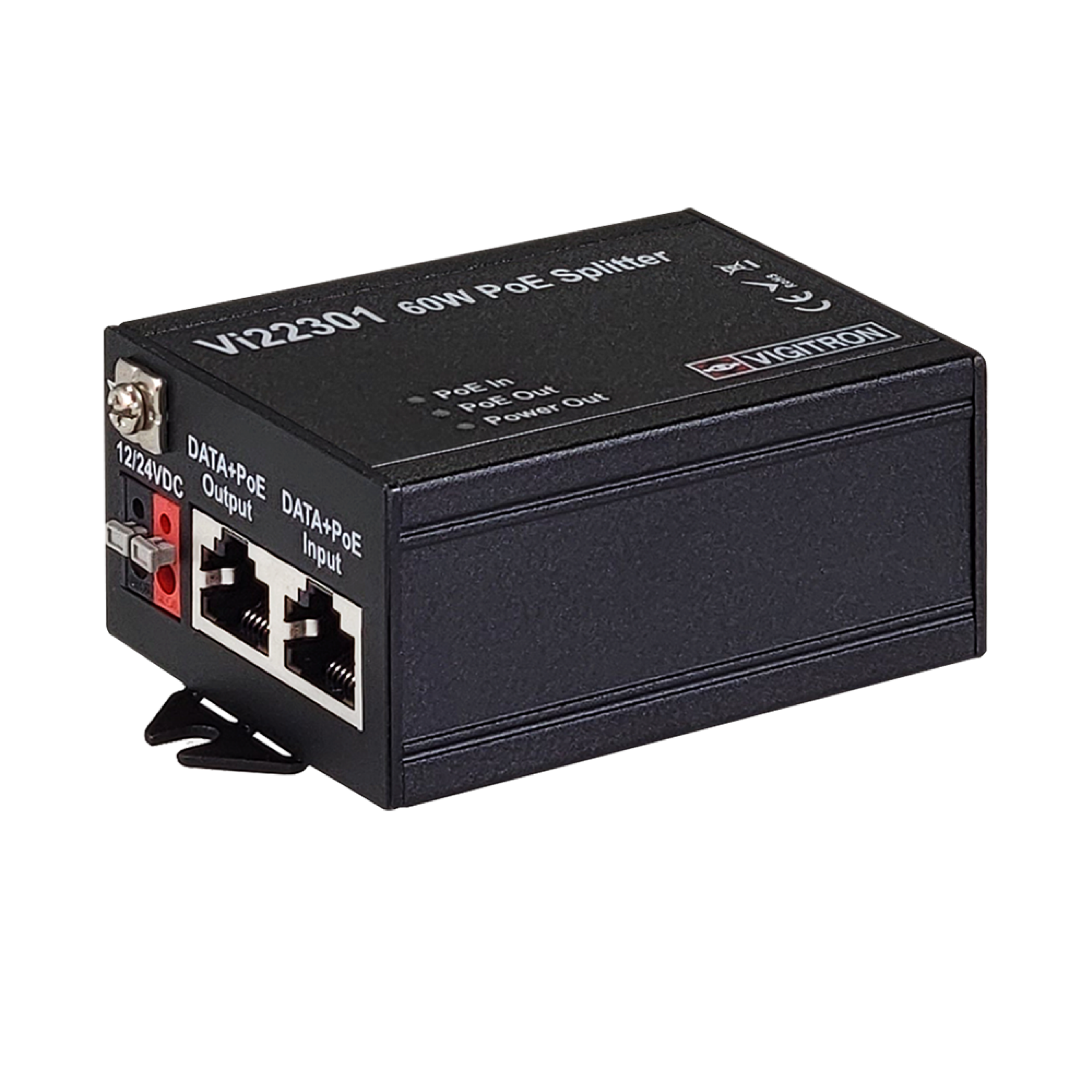

The Vi22301 is a PoE splitter providing up to 30W of PoE and 12VDC or 24VDC. It is the perfect solution for powering both PoE devices such as IP cameras and devices requiring DC power such as LED and emergency phone systems.
The Vi22301 can also be used with IP PTZ dome cameras that require PoE power for the camera and DC power for heaters and blowers. It eliminates the need for running a separate power cameras reducing installation costs to a single IP PoE power camera.
| Electrical | |
| Ethernet Interface | Standard 10/100/1000Base T |
| Power Consumption | Based on input power |
| Power Input | PoE IEEE 802.3af, 15.4W PoE IEEE 802.3at, 30W UPoE up to 60W |
| Power Output | 12VDC or 24VDC - (up to 30W) 30W PoE Port - Total power will depend on a combination of PoE and DC power required |
| Connections | Input Data + PoE: RJ45 Output Data + PoE: RJ45 Power Out: Push Connector |
| Status LEDs | PoE Input: Orange PoE Output: Orange 12/24VDC Output Available: Green |
| Data Interfaces and Compliances | RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC 791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission |
| PoE Compatibility | IEEE 802.3af / Class 0,1,2,3 IEEE 802.3at / Class 4 60W PoE sources compatible sources |
| Side Switch | 30W/60W Select |
| Environmental | |
| Humidity | 0% to 90%, Non-condensing |
| Temperature | Operating: -40°C to +75°C Storage: -65°C to +150°C |
| Mechanical | |
| Dimensions | 1.36x2.13x2.91 in., 34.5x54.1x73.9 cm (HxWxL) |
| Weight | 0.328 lb, 149 g |
| Regulatory | |
| Safety | CE, FCC |
| Environmental | RoHS, WEEE |
| *Specifications subject to change without notice. | |
