Overview

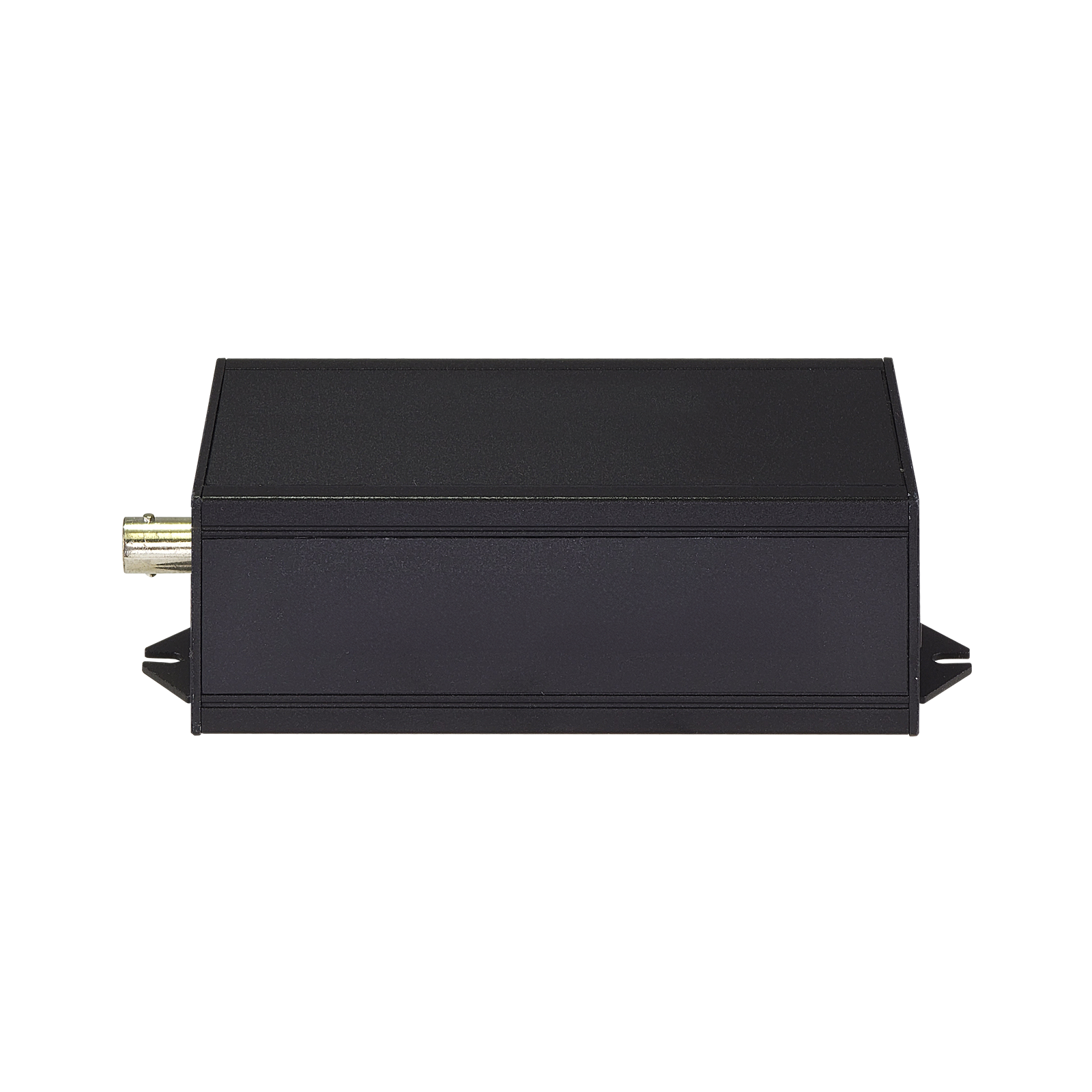

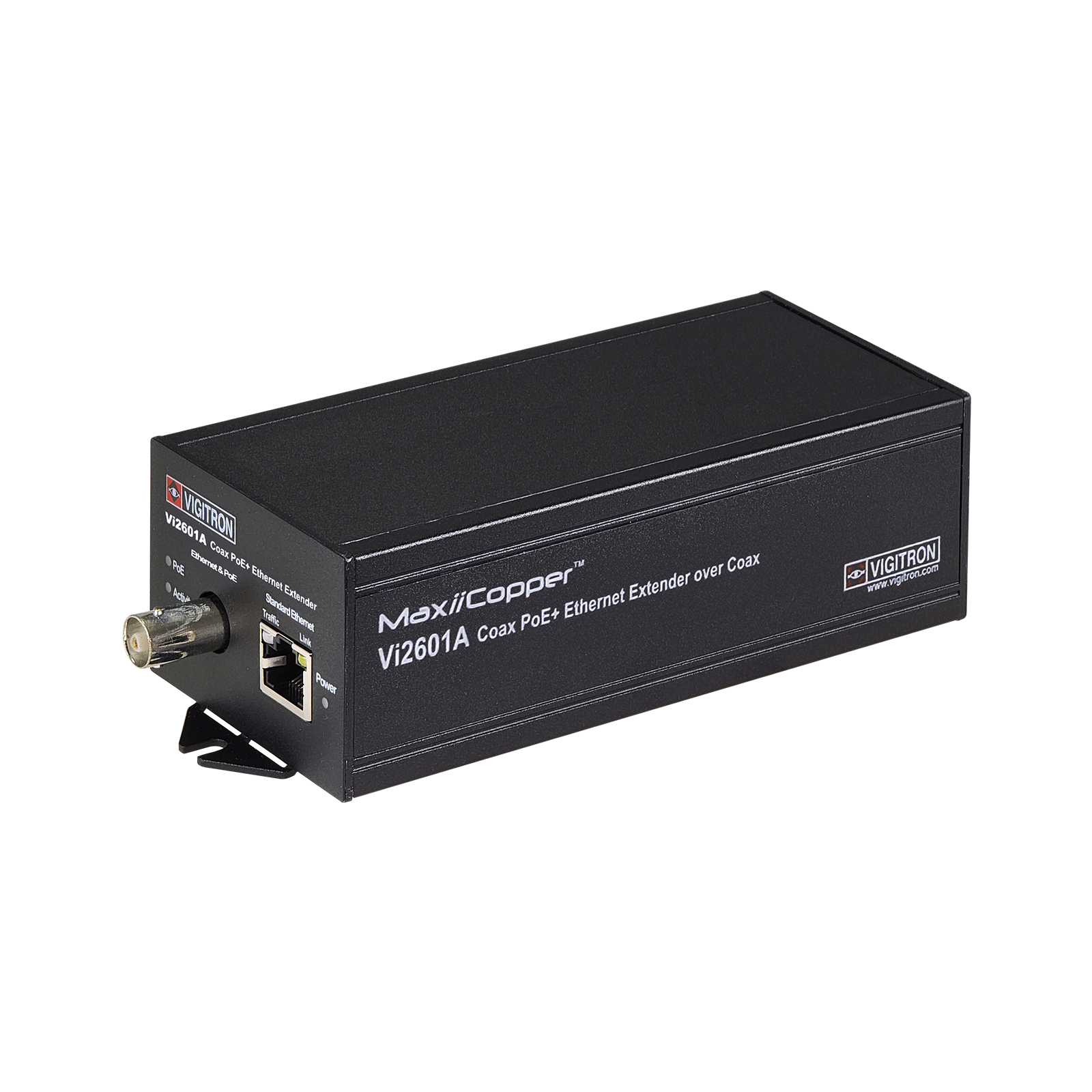

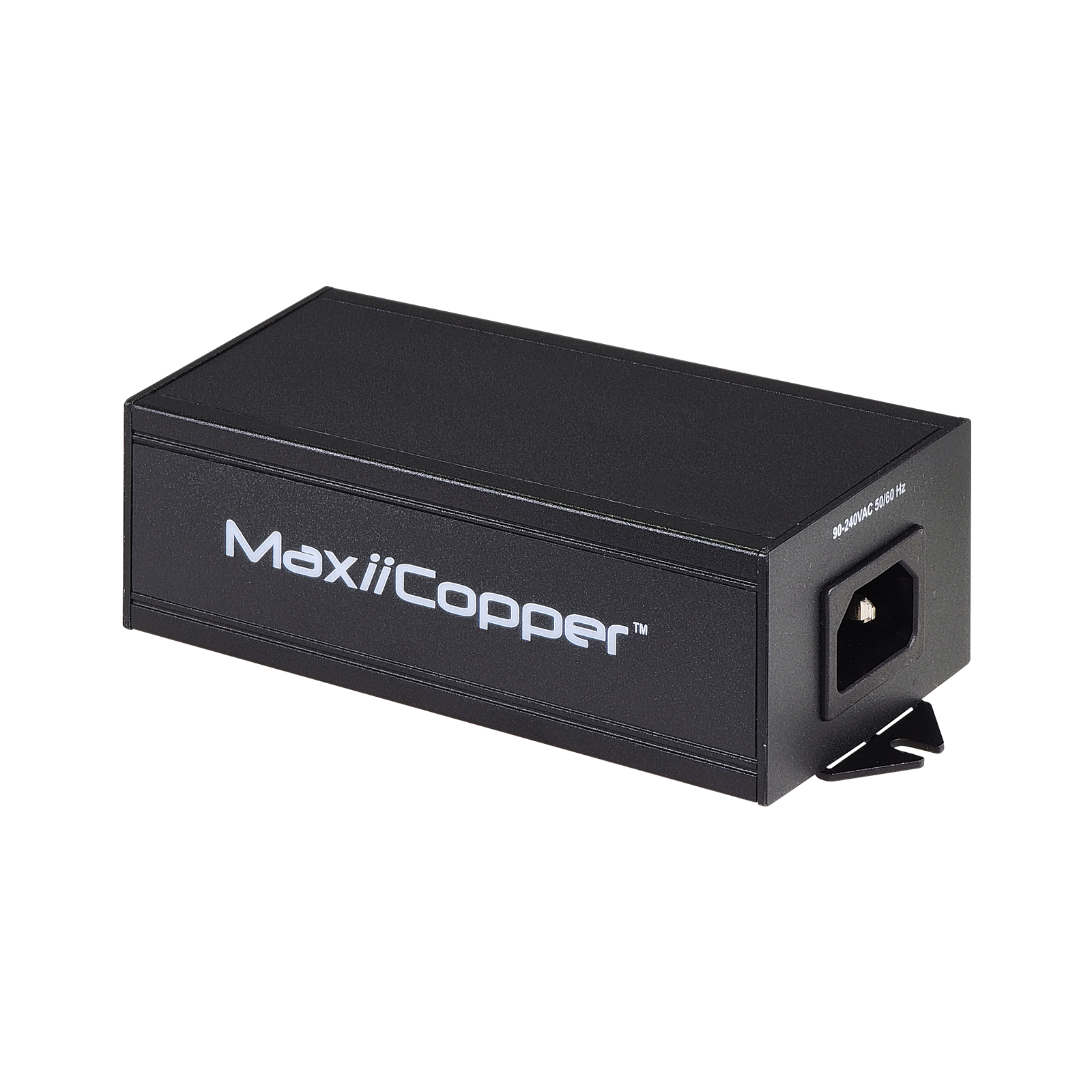

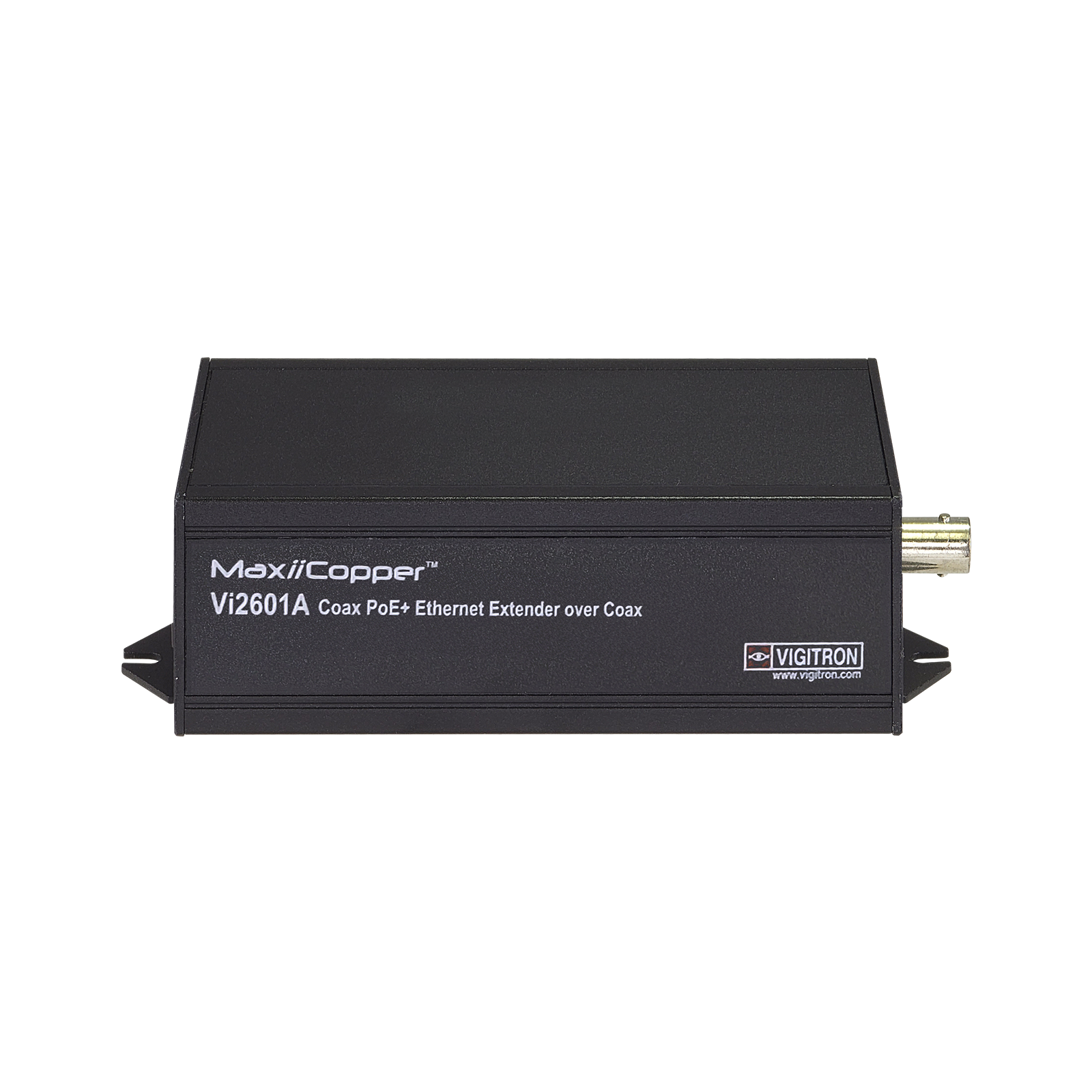

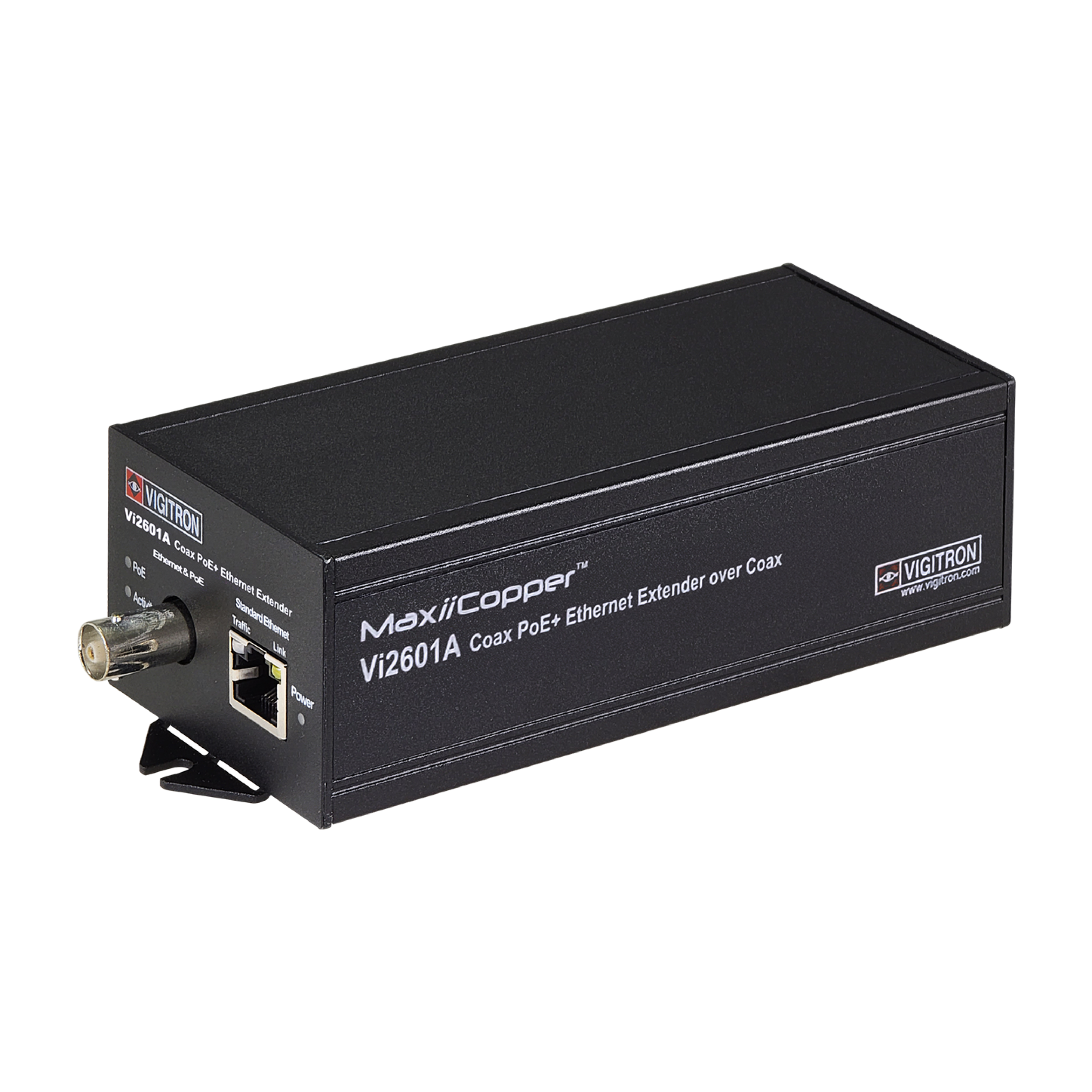

The MaxiiCopper Model Vi2601A is a revolutionary transmission device that extends full-duplex High Speed Ethernet and High power PoE over Coax cable infrastructures. It extends 10/100BaseT signals and PoE up to 3,000 feet (914 m). It employs MaxiiCopper™ innovative and unique Ethernet and PoE extension technology that is designed to take full advantage of high-bandwidth networking cables and maintain a full-duplex 10 or 100 mb/s Ethernet connection up to the maximum range with minimum transmission error and latency.
The Vi2601A is installed at the control room and can provide up to 30W power to Vi2400A or Vi2401A at the camera side.
The Vi2601A includes unique features that assure high performance required to support the largest Megapixel cameras. It is equipped with LEDs to provide link status and configured data rate. No IP setting or configurations are required and it is completely transparent to the corporate IP network and higher layer protocols. The Coax cable needs to be point to point without any branches. Multiple segments can be joined together using Coax couplers.
