Vi22501

Features

Uses DC input 12-56VDC to provide PoE
Enables converting existing analog CCTV systems to IP
Powers 30W PoE cameras using DC power sources
Compact design for use in environmental enclosures
Wide operating temperature range -30°C to +50°C
Auto-sensing 10/100/1000Mbps data rate
Din-rail mountable

Overview

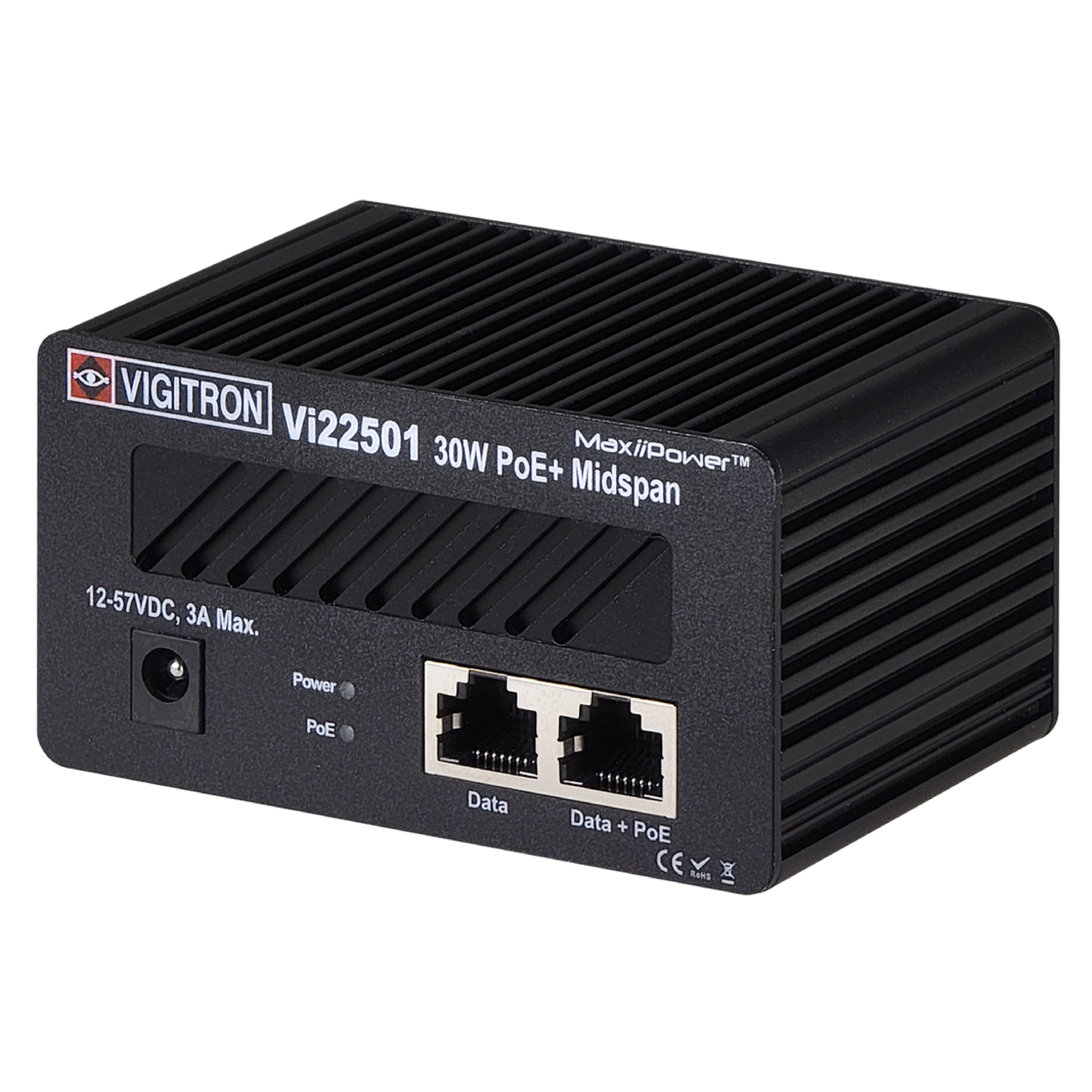

Vigitron’s Vi22501 is a 30W Midspan that accepts DC inputs from power sources 12VDC to 56VDC. It is an ideal solution for existing analog CCTV installations or locations with only local DC power to convert to PoE IP camera systems. It is compact in size with a DIN Rail adapter that can easily be installed inside indoor or outdoor environmental housings. With PoE power up to 30W, the Vi22501 is a perfect solution for a wide range of cameras with only DC power sources available. It is hardened and offers a wide operating temperature range of -30°C to +50°C.

The Vi22501 is a cost-effective solution that enables using a wide range of DC power supplies for powering PoE devices.

Specification

Electrical
Data Rate	10/100/1000BaseT
PoE Standard	IEEE 802.3af(15.4W), IEEE802.3at (30W)
Network Connectors	RJ45 X 2
DC Power Connector	2.5mm Round Barrel connector
Power Consumption	2.2W standby, 35W with full load
DC Power Input	12-56VDC @ 2.9A Max.
PoE Standard	IEEE 802.3af, at up to 36W on all ports IEEE 802.3af, at, bt up to 72W on Ports 1-4 Main Power: IEC 320-C14 inlet
Indicators	Power LED (Green); PoE LED (Green)
Data Interface and Compliances	RFC 768 UDP, RFC 2068 HTTP RFC 793 TCP, RFC791 IP RFC 1783 TFTP, RFC 894 IP over Ethernet RFC 2544 TCP/IP Packet Transmission IEEE802.3af, IEEE802.3at, uPoE
Regulatory
Safety	CE
Environmental	RoHS, WEEE
Environmental
Humidity	0 to 95%, non-condensing
Temperature	Operating: -30°C to 50°C Storage: -40°C to +80°C
Mechanical
Dimensions	2x3.75x3.08 in., 5.1x9.5x7.8 cm (HxWxL)
Weight	0.75 lb (340 g)
Material	Extruded Aluminum
Accessories
Mounting clips
Din rail adapter
*Specifications subject to change without notice.
