Maxii
Net

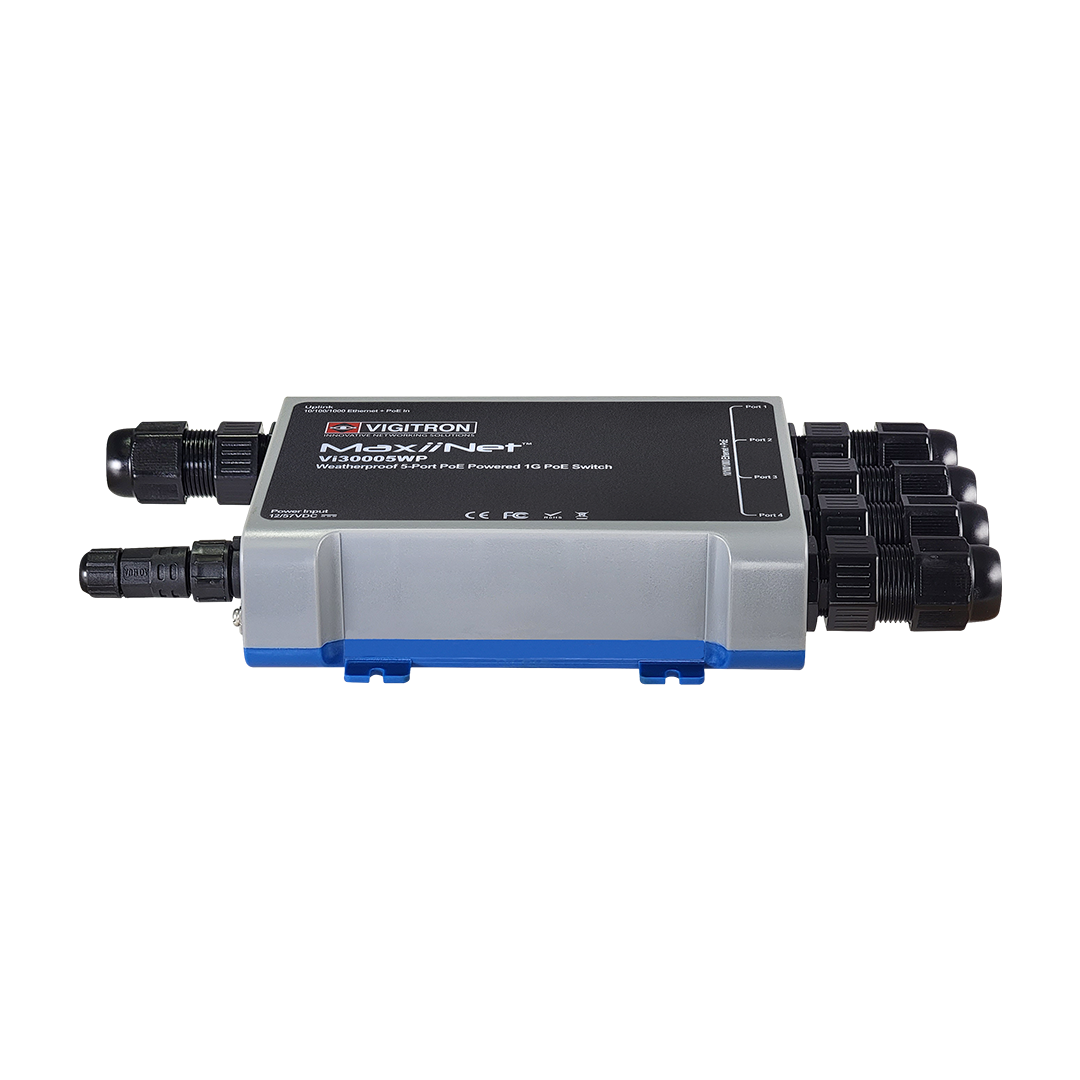

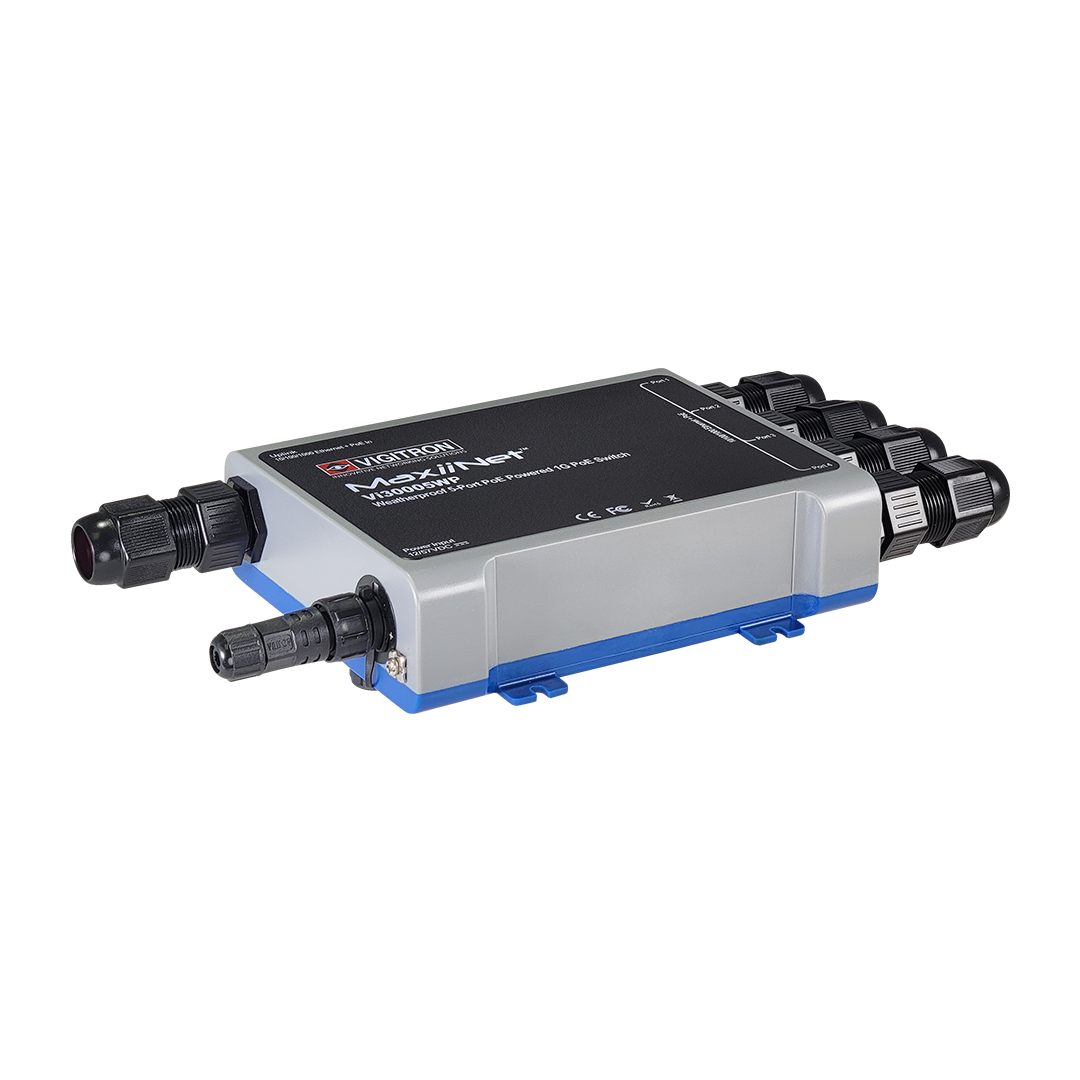

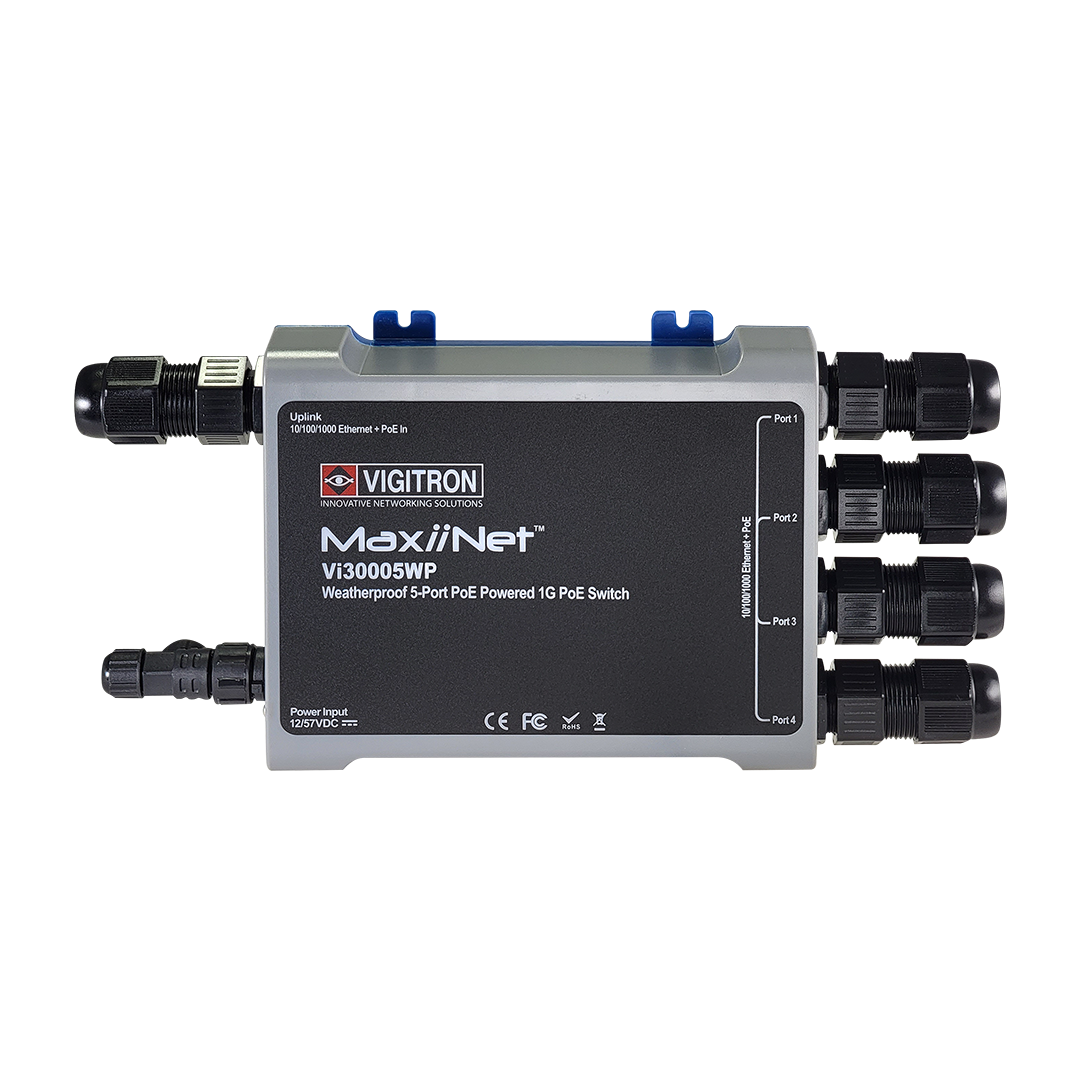

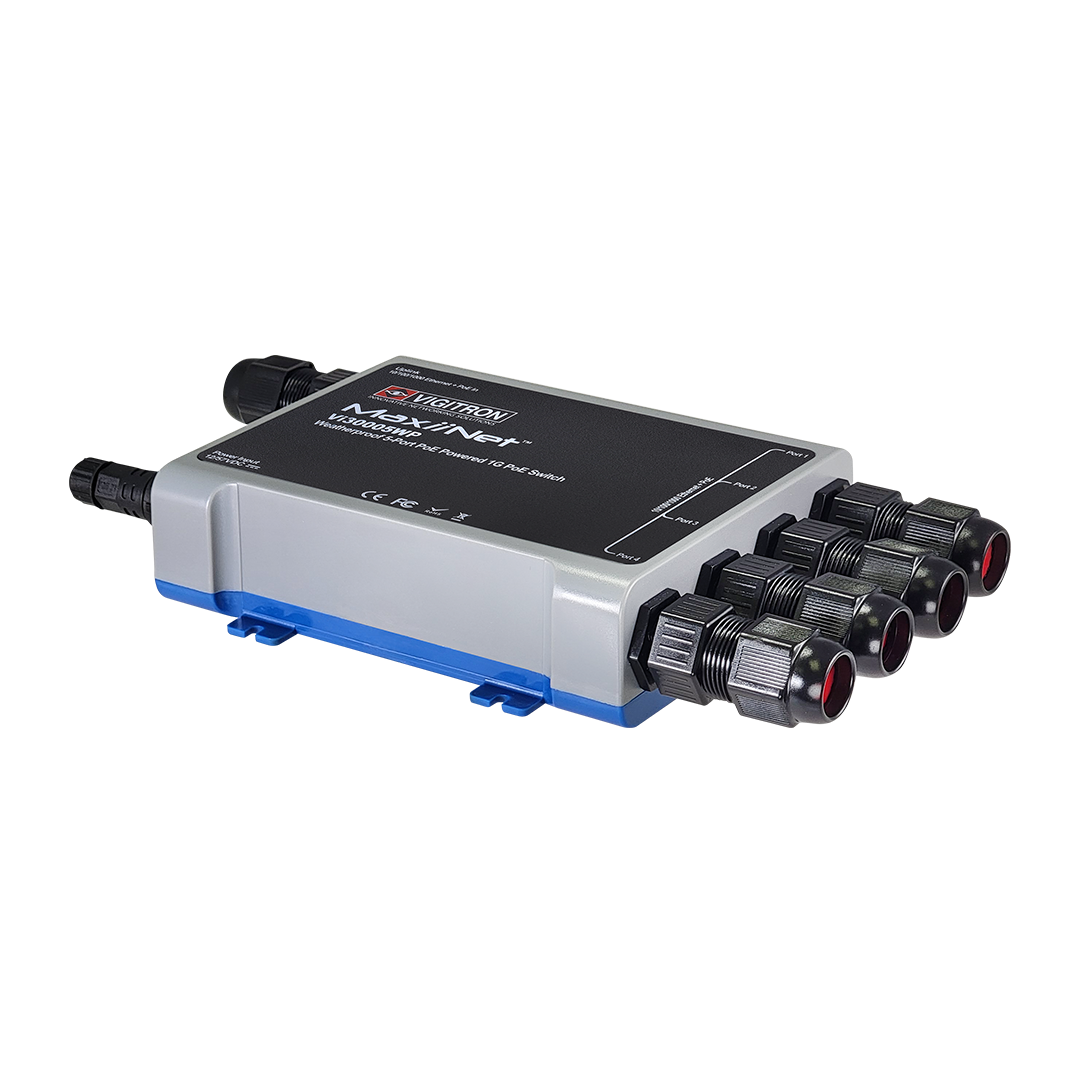

5-Port, 1G, IP67 PoE Powered PoE Switch

Vi30005WP

Features

  • 5-port Layer 2 PoE powered PoE switch
  • 100/1000Mbps network speeds, auto-sensing
  • IP 67 weatherproof/Waterproof
  • 6Kv surge protection
  • Certified for IEC600068-2-52 for salt-laden environments
  • Can be powered from a remote PoE source to provide PoE power to all 4 ports
  • Up to 36W PoE per port, capable of combing each 2-ports for up to 72W
  • Automatic PoE port priority allocation
  • Over-current shutdown protection if the allocated PoE budget is exceeded
  • Certified (MPC™) high data rate for virtual loss-free transmission of cameras
  • Type tested to RFC 2544 TCP/IP network bandwidth packet transmission standards
  • Type tested for -40°C to +75°C operating temperature range
  • Complies with major IEEE standards and RFC network protocols for UTP, TCP/IP HTTP/HTTPS
  • Provides full Layer 2 network switch functionality

Overview

Vigitron's MaxiiNet™ Vi30005WP fixed-managed 5-port 1000Mbps Gigabit PoE switch sets new performance standards for high-speed Ethernet transmission in demanding environments. Featuring an IP67 weatherproof enclosure and IEC 60068-2-52 salt-spray certification, this outdoor switch is ideal for coastal, marine, and harsh industrial security installations. It offers flexible power input options via remote PoE sources (up to 72W) or local power, delivering IEEE 802.3at power up to 36W per port to support high-draw IP devices. The Vi30005WP operates reliably from -40°C to +75°C and provides the commercial-grade durability required for rugged perimeter and outdoor network applications.

MegaPixel Certification (MPC™) validates its network packet transmission performance, and extensive compatibility testing with major camera manufacturers ensures error-free, plug-and-play operations. It features fixed Layer 2 with a non-blocking switch fabric to maintain continuous, smooth video streaming. Proven reliability, industry wide camera compatibility, and significant installation cost savings make the Vigitron Vi30005WP the ideal solution for data and power delivery. Whether deployed in extreme outdoor climates or heavy industrial settings, this weatherproof PoE switch delivers the speed, security, and uptime your network demands.

Specification

Electrical
Ethernet InterfaceStandard 100BaseT/1000BaseT
UTP100 Ohm +/- 20%, up to 328 ft. (100m)
Power Source PoE: IEEE 802.3af (15.4W), IEEE 802.3at (30W), 72W UPoE
Power Supply: 57VDC @ up to 120W or
12VDC @ 1A (non-PoE operation)
ConnectorsPoE: IEEE 802.3af (15.4W), IEEE 802.3at (30W) up to 72W
Power Supply: 57VDC @ 120W (PoE operation) or 12VDC @ 1A (non-PoE operation)
RFC2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
PoE CompatibilityIEEE 802.3af, IEEE 802.3at
Jumbo FrameUp to 9,600 bytes
Regulatory
FCCPart 15, Subpart B, Class B 2010
Emissions EN 5502:2006+A1:2007
EN 61000-3-2:2006+A1:2009+A2:2009
EN 55024:1998+A1:2001+A2:2003
SafetyCE
EnvironmentalRoHS, WEEE
Environmental
Humidity0 to 95%, non-condensing
Temperature Operating: -40°C to +75°C
Storage: -40°C to +85°
Mechanical
Dimensions1.2x5.42x6.61 in., 4.67x13.8x16.8 cm (HxWxL)
Weight2.06lbs (934g)
HousingABS plastic, UL rating of 94V-0
Optional AccessoriesVi1120: 57VDC, 120W Power Supply
Vi0017: 48VDC, 40W Power Supply
Vi0012: 12VDC 1A Power Supply for non-PoE operation
Vi0016: Combiner Adapter for 72W PoE Operation
*Specifications subject to change without notice.

Downloads

Vi30005WP Data Sheet
Vi30005WP Application Drawing
Vi30005WP Product Drawing
Vi30005WP A&E Specification

Ordering Information

Vi30005WP 5-Port, 1G, IP67 PoE Powered PoE Switch
