Maxii
Copper

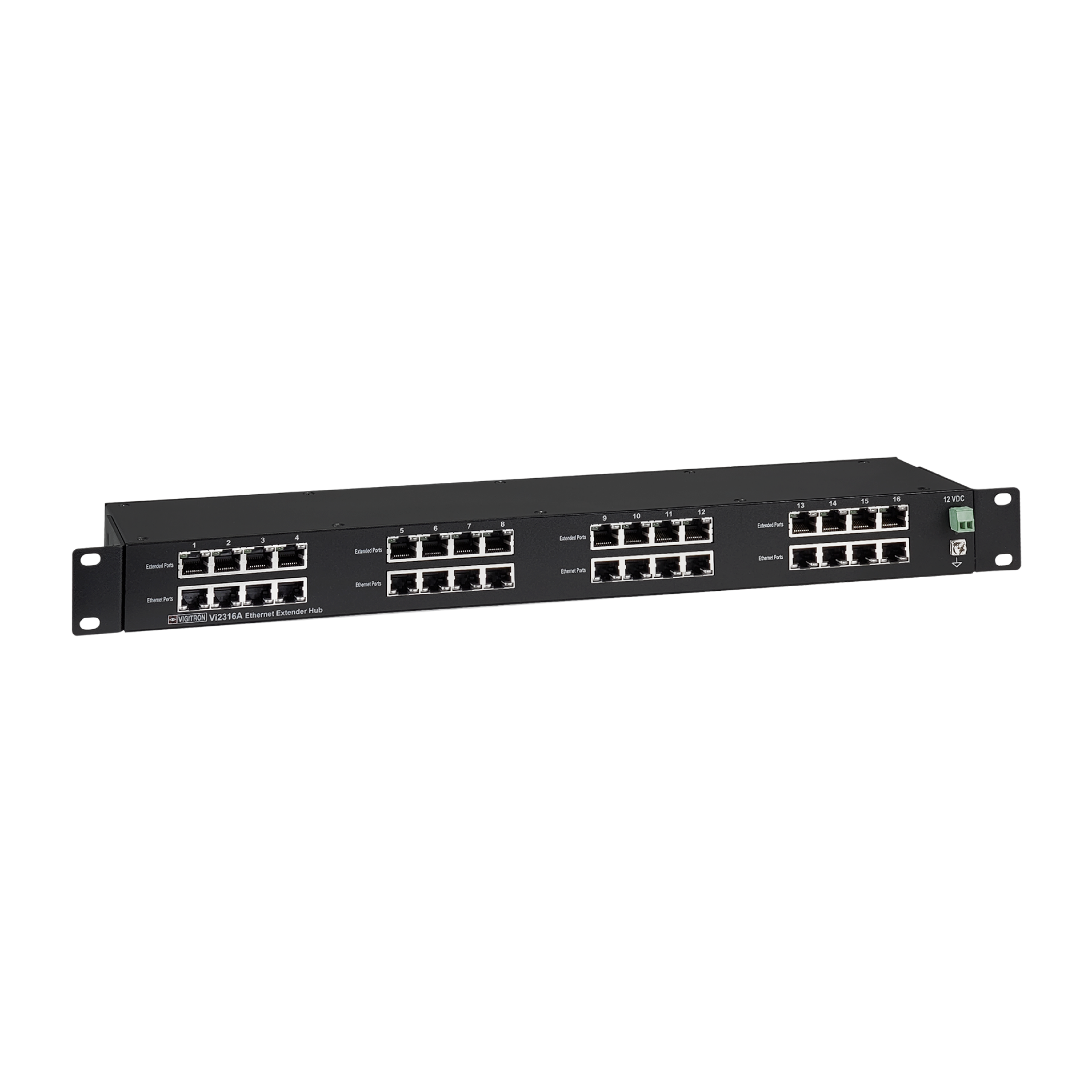

16-Port Ethernet Extender over UTP

Vi2316A

Features

  • Extends Ethernet beyond 328 feet (100 m) limitation up to 3,000 feet (914 m) over UTP
  • Extended Pass-Through PoE (PTP™) compatible with 802.3af, at, bt up to 74W
  • MegaPixel Certified (MPC™) High data rate, ideal for high bandwidth requirements of MegaPixel cameras, multiple IP cameras systems, and cameras requiring Jumbo Frames
  • Symmetric Bandwidth (SBW™) provides consistent upload and download with Virtual Zero Packet Loss (VZPL™)
  • Type tested to RFC-2544 TCP/IP network bandwidth packet transmission standards
  • Supports one-pair or four-pair UTP wires
  • Type tested for -40°C to +75°C temperature range under conforming to NEMA-TS2
  • Complies to major IEEE standards and RFC protocols for UDP, TCP/IP, HTTP/HTTPS

Overview

Vigitron's MaxiiCopper™ Vi2316A Extender brings new performance standards to the growing need for high-speed transmission of full bandwidth Ethernet and PoE over extended distances including high-power PTZ domes with heaters and blowers. Its unique Symmetric Bandwidth (SBW™) assures full bandwidth transmission is maintained over the entire operational distance for both uploads and downloads with Virtual Zero Packet Loss (VZPL™). Bandwidth assurance provides the ability to transmit multiple cameras on single camera runs with no information loss. The Vi2316A has a compact EIA 19” 1U rack design for easy installation.

Extended Pass-Through PoE (PTP™) up to 74W eliminates the need for additional cost for remote site power. Type tested under NEMA-TS2 environmental standards for -40°C to +75°C, this extender is the perfect solution for remote signal and power transmission for warehouses, parking lots, campuses, casinos, and many more. Best of all, the Vi2316A is MegaPixel Certified (MPC™), the type tested to network packet performance standards, and major camera brand compatibility tested to assure you error-free and reliable operations. The Vi2316A provides sixteen extended ports to meet the requirements of a wide variety of CCTV system applications.

Installation cost savings, proven performance, and major camera brand compatibility all go into making the Vigitron's MaxiiCopper™ Vi23xxA series your best choice for extended distance Ethernet and power transmission.

Specification

Electrical
Ethernet InterfaceStandard 10/100BaseT
Data RateAuto select 10/100 Mb/s
Full speed / full duplex at maximum rated distances
UTP100 Ohm +/- 20%, Cat5 or better
10BaseT: up to 3,000 ft. (914 m)
100BaseT: up to 2,100 ft. (640 m)
Power Consumption12 VDC, 1.8 W w/PoE, 1.5 W w/external power supply
Status LEDsPower On
Standard Ethernet: Traffic, Link
Extended Ethernet: Traffic, 10/100BaseT
ConnectorsEthernet Interface: RJ-45 Connector
Extended Interface: RJ-45 Connector
Power: 2-pin Pluggable Terninal Block
RFC2544 TCP/IP Packet Transmission
PoE CompatibilityIEEE 802.3af, IEEE 802.3at, IEEE 802.3bt PoE Standards up to 74W
RFC2544 TCP/IP Packet Transmission
768 UDP, 2068 HTTP, 793 TCP
791 IP, 1783 TFTP, 894 IP over Ethernet
UPoE Compliant to 74W
Jumbo Frame SupportYes
Regulatory
FCCPart 15, Subpart B, Class B 2010
EmissionsEN 5502:2006+A1:2007, EN 61000-3-2:2006+A1:2009+A2:2009
EN 61000-3-3:2008, EN 55024:1998+A1:2001+A2:2003
SafetyCE
EnvironmentalRoHS
Environmental
Humidity Operating0 to 95%, non-condensing
TemperatureOperating: -40°C to +75°C
Storage: -40°C to +85°C
Mechanical
Dimensions0.97x1.75x2 in., 2.5x4.4x5 cm (HxWxL)
Weight0.15 lb, 67 g
MaterialExtruded Aluminum
Optional Accessories
Rack mount brackets
*Specifications subject to change without notice.

Downloads

Vi2316A Data Sheet
Vi2316A User Manual
Vi2316A A&E Specification
Vi2316A Application Drawing
Vi2316A Product Drawing
